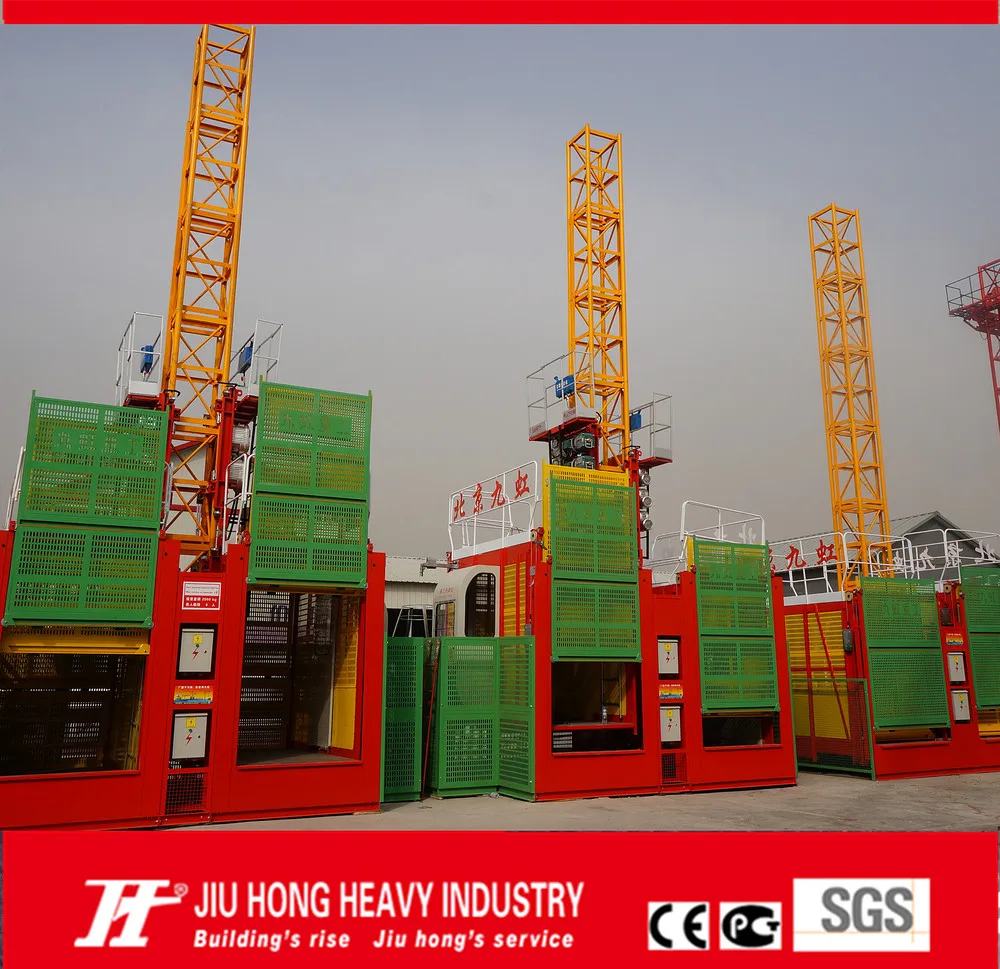

Building Hoist used for passenger and material lifting

FOB Reference Price:Get Latest Price
$31,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
type:
SC100 SC200 SC100/100 SC200/200
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
Jinfei Tianhong
Model Number:
SC200/200
Usage:
Residential Elevators
Drive Type:
Rack & Pinion
Elevator Type:
Passenger Elevators
Type:
Elevators
Rated load:
2000KG each cage
Lifting speed:
33-36m/min
Material:
Steel/Aluminum Alloy
Certificates:
CE, ISO1:2000, GOST
Roll:
vertical, horizontal
Safety device:
safety lock etc.
Electric cable:
100m
Voltage:
380v/220v, 60Hz/50Hz
Supply Ability
Supply Ability:
3000 Set/Sets per Year
Packaging & Delivery
Packaging Details
plywwod ,wood case ,containers
Port
Tianjin



Building Hoist used for passenger and material lifting

Product Description

 Name:   construction passenger elevator



 Model:                       Cage                         Capacity (ton) :



SC100  elevator (Single cage)                                 1 T

SC100/100  elevator (Double cage)                    1T+1T

SC150  elevator (Single cage)                               1.5T

SC150/150 elevator (Double cage)                   1.5T+1.5T

SC200  elevator (Single cage)                                2T

SC200/200  elevator (Double cage)                   2T2T

  • Capacity – 1T, 1.5T, 2T, 3T & 4T
  • Cage
    • Single
    • Double
  • Cage Dimension
    • Standard - 3 X 1.4 X 2.4 Mtrs.
    • Customized upto 4.5 x 2.5 x 3.5 Mtrs.

SC200/200 Building passenger elevator adopted computer aided design.

Comparing with traditional building hoists, it is attractive, light, easy to handle, secure, applicable, and popular.

Depending on special needs of regular or irregular sections, the lifting capacity can reach up to 1~2 tons, and the running speed can reach 28~38m/min.

Moreover, VVVF speed regulation and PLC enable 0~68 limitless speed, automatic layer selecting and leveling as required.

SC200/200 Building Hoist is excellent in technical performance, more secure in operating mechanism, and more compact in structure.

SC200/200  good price for passenger elevator
Parameters of construction passenger elevator

Name

Unit

SC100

SC100/100

SC200

SC200/200

Rating loading capacity

Kg

1000

2×1000

2000

2×2000

Passenger number

Person

12

2×12

16

2×16

Rating rising rate

M/min

36

36

36

36

Max. promoting height

M

200

200

200

200

Motor power

KW

2×11

2×2×11

3×11

2×3×11

Voltage

V/ HZ

380/50

380/50

380/50

380/50

Cage size

M

3*1.3*2.5

3*1.3*2.5

3*1.5*2.5

3*1.5*2.5

650 mast section weight

Kg

128

150

128

150

650 mast section length

(painted)

M

0.65×0.65

×1.508

0.65×0.65

×1.508

0.65×0.65

×1.508

0.65×0.65

×1.508

Steeve rating rising weight

Kg

200

200

200

200

Containers for Shipment

pcs

1*40’HQ

1*40’HQ

1*40’HQ

1*40’HQ

We can make 30m,50m,60m,70m,72m to 90m.

Main parts as below:

A:  Cage with wheelhouse

B:The information display system :

If the elevator don't work,you can see the rouble of elevator through the  system.

C:safety device in cage: against the elevator fall.

Breaker of high quality

Wonderful power motor with  tanker:

Mast section with good material

Certification of CE,GOST,CCC and so on
