Material Hoist/JH SS100/100 material hoist

FOB Reference Price:Get Latest Price
$8,800.00 - $9,900.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SS100/100
Motor Power:
2 x 11
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Rated Loading Capacity(kg):
2000kg
Max Lifting Height:
80m
Hoisting Speed:
23.5m/min
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Applicable Industries:
Building Material Shops, Construction works
Condition:
New
Place of Origin:
Beijing, China
Brand Name:
FTH
Dimension(L*W*H):
2.8*1.50*1.9m
Loder Weight:
2T
UNIQUE SELLING POINT:
High operating efficiency
Product Name:
Construction elevator
Rated Lifting Speed:
23.5m/min
Max.Lifting Height:
200m
Max lift capacity:
200kg
Mast section size:
650*650*1508(mm)
Mast section weight:
150kg
Usage:
for material
Motor Power:
2 x 11kw
POWER SUPPLY:
380V 50HZ/60HZ
Cage Dimension:
3000 x 1500 x 2500mm
Supply Ability
Supply Ability:
3000 Set/Sets per Year Material Hoist/JH SS100/100 material hoist
Packaging & Delivery
Packaging Details
Packaging film and metal pallet. Or package according your requirement
Port
Qingdao Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated







                                      Material Hoist/JH SS100/100 material hoist Alibaba Members

Product Description



  Manufacturer from China---Beijing Jiuhong Heavy Industry Machinery Co.,Ltd set up in 2001 and  JH brand series products have been used in every corner in China, and have been exported to more than 20 counties, such as Middle South Asia, Asian, East Asia, Europe, North America, South America, Latin, Africa, Middle East Asia etc.  the brand of Beijing Jiuhong has become world famous.





Technical Parameter of Material Hoist/JH SS100/100 material hoist Alibaba Members --FTH Material Hoist

Item

Unit

Parameter

Basic Installation Height

m

24

Attachment Installation Height

m

80

Rated Lifting Capacity

Kg

1000/1000

Lifting Speed

m/min

23.5

Cage Dimension (L*W*H)

m

2.8*1.5*1.9

Sectional Dimension Of Bracket

m

0.85*0.85

Motor Power

Kw

Single-cage 11    Double-cage 22

Steel Rope Model



6*37+1-12-170-Right

Steel Rope Length(Typical)

m

150

Total Weight

Single-cage (at 24m)

Kg

3760

Double-cage (at 24m)

Kg

5450





FTH Material Hoist SS100/100 secure and visible control center is a new designed product according to the construction industry special requirement,which adopt the latest computer chip technology, Compared with the previous generation products,its function,safety and usability and stability have been greatly improved.



JH Material Hoist with High Security

1.Overload protection 2. Losting-phase protection

3.Safety door protection 4. Interlayer door protection

5. Motor reversal protection 6. Mechanical crash roof protecton

7.Sensor fault protection 8.Motor cutting-out or overload protection.

9. Alarm bell output protection 10.Data protection



JH Material Hoist with Advanced control performance

1. Four rope machinery prepare for leveling

2. Straight type function setting

3. Direct-reading height Electronic Ruler

4. Automatic identification floor

5. Built-in interphone

6. Intellectualized correction deflection function

7. Automatic resetting target floor function

8. Simplicity of operation

9.Computer tips function

10. Password Protection Function



Material Hoist/JH SS100/100 material hoist Alibaba Members,



Secure and visible control center for SS100/100 material hoist



Four hot selling point



Reliable,durable and easy to maintenance of JH Material Hoist

1.Fast maintenance

2.High reliable manual function

3.Dust proof

4.Anti-jamming

Perfectly control





   Material Hoist/JH SS100/100 material hoist Alibaba Members / JH Material Hoist SS100/100  is a vertical handling machine dedicated for materials widely applied in building construction, industrial and mining, multi-storey workshop, warehouse, station, wharf, etc. It is convenient, efficient, and secure.

      SS100/100 is set up with safety multiple protection measures like Floor-selecting and Leveling Device, Elevating Limiter, Rope Protection Device, Parking Safety Device, Bumper, Upper and Lower Height Restrictor, Anti Rope-breaking Equipment, among which, the brake performance and brake slide distance of the Rope Protector are above  national  standards. It is safe, reliable, and harmless to rail-track.

      There are two accesses for Floor Selecting and Leveling for JH Material Hoist:

 1. Manual Control, which is direct control by the operator.

 2. Computer Automatic Positioning System (Optional for order), which can easily realize floor-selecting and leveling without manual stop or point car leveling, reducing the difficulty of manipulation, convenient and precise.

        SS100/100 adopts Wall-attaching Device instead of Wind Rope, along with self-erection and dismantling unit (Derrick), easy for handling and transportation.

        SS100/100 has 2 types: Single-caged and Double-caged, optional for users. The standard sections of Double-caged are 4 pieces of ø76 * 4 seamless steel pipes, which can also be taken as guide rail, while those the Single-caged are 2 ø51 * 4 pipes.











Our Services



After-sales service of  Material Hoist/JH SS100/100 material hoist Alibaba Members / JH Material Hoist SS100/100 :

----The equipments have one year guarantee period. If any part has the quality issue during this period, we will change on our payment.

----We supply free spare parts for one year use when the equipment exits the factory. This is to prepare the equipment to facilitate the replacement.

----2sets of 24hours after-sale service hot line is ready to reply any question from the customer called any time.

----Network after-sale service is available too. Through the instant network connect we supply customers the video& voice presentation and the literal interpretation.

----Technical information will exit the factory together with the equipment, including installation and maintenance manual, installation video, etc.

----Finally, if you need, we shall send one technician to the site to provide guidance on installation and debugging and the training of operators. The guidance and training is free of charge within 10 days, but the technician’s round-trip international air tickets, visa application fees, personal insurance, board and lodging expenses are paid by the customer. If the installation time exceeds 10 days, the customer should pay each technician 50USD/day.









Company Information

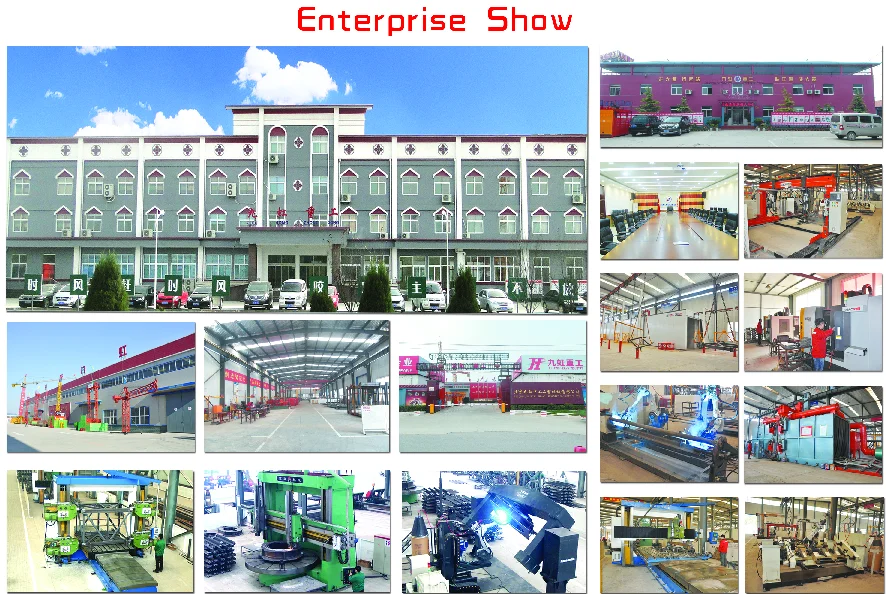

Beijing Jiuhong Heavy Industry Machinery  was founded in 2001, has been engaged in the manufacture of construction lift machinery for decades of yearsSuspended platform, construction elevator, material hoist, tower cranes are the major products of JH.




Certificate:











The company covers an area of 3.1 million square meters,Building areas are 2.3 million square meters,the registered capital is 8 million yuan,and own the fixed assets of 80 million yuan. The employees more than 500 people (5 advanced engineer, 15 engineer and technology worker are 27.)

In China, Beijing Jiuhong brand series products have spread all over the construction area, the product quality is first class, we could produce the all kinds of special construction machinery and non-standard equipments according to the requirements of customers.

Beijing Jiuhong brand series products have been used in every corner in China, and have been exported to more than 20 counties, such as Middle South Asia, Asian, East Asia, Europe, North America, South America, Latin, Africa, Middle East Asia etc. The volume of export has reached to 30% of total year sales volume, the brand of Beijing Jiuhong has become world famous.

















More products available



---- SC Series construction elevator







---- ZLP Series Suspended Platform











  ---- QTZ series of tower cranes
