hot sale aluminum suspending scaffolding platform

FOB Reference Price:Get Latest Price
$1,500.00 - $4,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
JIUHONG
Model Number:
ZLP630/ZLP800
Lift Mechanism:
Lift Chain
Lift Drive / Actuation:
Electric Motor
Power:
1.5kw*2/1.8kw*2
Rated Loading Capacity:
630/800kg
Min. Lifting Height:
0m
Max. Lifting Height:
100m
Table Size:
Customer's Request
Weight:
800kg
Certification:
CE,ISO,GOST .
Color:
Silvery
Counterweight:
1000kg
Voltage:
380v/50hz
Cable:
100M
Lifing speed:
8-10m/min
After-sales Service Provided:
No overseas service provided
Warranty:
1Year
Supply Ability
Supply Ability:
800 Set/Sets per Month
Packaging & Delivery
Packaging Details
Product package with shock absorption plastic;
Iron shelf it could design for your requirement.
hot sale aluminum alloy suspending platform popular high quality
Port
Qingdao
Lead Time :
7 days
Product Introduction

Application:

 Cleaning work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.

 Painting and decoration work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.

Repair and maintenance work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.

Widely applied to various works of building walls, glasses, external walls, large chimney, large tanks, dams etc.

Production details:



Technical Parameter:





Name

Technical parameter

Model

ZLP800

ZLP630

Rated load

800Kg

630Kg

Lifting speed

8-10m/min

8-10m/min

Platform Dimension L×W×H(mm)Spray plastics corrosion-resistant

7500(2.5m*3)×720×1300

6000(1+2+3m)×720×1300

Lifting Height

100 m

100 m

Cable

100 m

100 m

Steel rope  (specially-made)

Φ9.1mm



Φ8.3mm





Hoist

Pulling power

7.84KN

6.17KN





electric motor

Model

YEJ100L-4

YEJ90L-4





Power

1.8KW*2

1.5KW*2





Voltage

380V 50Hz

380V 50Hz





Rotational speed

1420rpm

1420rpm





Braking moment

15Nm

15Nm

Safety lock

Permission force of impact

30KN

30KN



Locking Cable Angle

3°~8°

3°~8°

Suspension mechanism(Galvanized )

Front beam overhang

1.3~1.5m

1.3~1.5m



Support adjustable height

1.2~1.8m

1.2~1.8m

Counterweight

1000kg

1000kg

20’ft container

8sets

9sets

40’ft container

13sets

14sets



Note:

The Voltage and Frequency could up to different countries' standard.

Counterweight is made of cement (25KG/piece)

Delivery time: According to customer’s requirement



Company Information



Beijing JiuhongConstruction Machinery Co,Ltd is a professional and accurate technique corporation that specializes in researching and producing suspended platform, construction elevator, work platforms, cradle, gondola,building hoist, material hoist, portal frame, suspended access equipment,which is one of the main enterprise for domestic building machine product export.In China, Jiuhong brand series product have spread all over the construction area,the product quality is first class, we could produce the all kinds of special construction machinery and non-standard equipments according to the requirements of customers.

The company covers an area of 6.1 million square meters,Building areas are 4.9 million square meters,the registered capital is 8 million RMB,and own the fixed assets of 80 million RMB.The employees more than 500 people(10 advanced engineer,25 engineer and technology worker are 37.)



Our products have been used in every corner in China, and have been exported to more than 20 counties, such as Middle South Asia, Asean, East Asia, Europe, North America, South America, Latin, Africa, Middle East Asia etc. The volume of export has reached to 30% of total year sales volume, the brand of Jiuhong has become world famous.



We insist in science and technology innovation, occupying markets with innovations, super quality and absolute faith. Our running principle is that quality comes first, customers come first, and reputation comes first. We face with friends and clients all over the world sincerely. To provide satisfied productions and services is our eternal pursuit and promise. Beijing Jiuhong hopes to cooperate with you sincerely.



Let us join hands with each other to advance and work for a prosperous future.






Product Flow



Sales Distribution
MarketRevenue(Previous Year)Total Revenue (%)
South Americaconfidential5.0
Eastern Europeconfidential8.0
Southeast Asiaconfidential4.0
Africaconfidential2.0
Oceaniaconfidential1.0
Mid Eastconfidential3.0
South Asiaconfidential7.0
Domestic Marketconfidential70.0

customer visit:



Packaging & Shipping

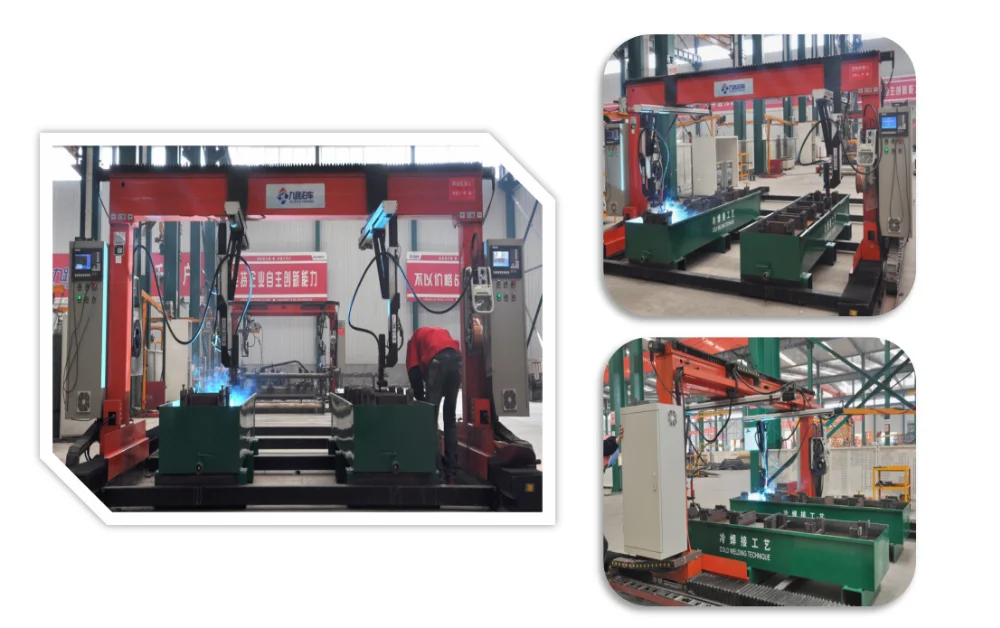

Factory pictures
