Construction elevator passenger hoist

FOB Reference Price:Get Latest Price
$19,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SC200; SC200/200
Motor Power:
2 *3*11
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Rated Loading Capacity(kg):
0~4Ton
Max Lifting Height:
200m
Hoisting Speed:
0~68m/min
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Applicable Industries:
Construction works
Condition:
New
Place of Origin:
China
Brand Name:
Jiuhong
Dimension(L*W*H):
3m*1.5m*2.5m
Loder Weight:
0~4Ton
Product name:
Construction hoist
Passenger number:
8~24
Motor brand:
German top brand
Voltage:
220 V / 380V /customized
Rating rising rate:
0~68m/min
Certificate:
CE/ ISO / GOST
Color:
customized
Control system:
rack and pinion
Mast section lenght:
650*650*1508
Motor power:
2 x 11 x 3 kw
Supply Ability
Supply Ability:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Standard export packing; As customer requirement
Port
Qingdao China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 10 To be negotiated
Our Company

Jiuhong --- Jiuroad Holdings Group

Beijing Jiuhong is long history brand of Jiu RoadHoldings Group, which started in 2001 and forcus on construction equipment manufacture, such as suspended platform, tower crane, construction elevator, and etc.

With more than 18 years hardworking, our products have been used in every corner in China. And have been exported to moe then 60 countries.

Product Description

Product Application

SC 200/200 Series passenger hoist is a vertical handling machine dedicated for materials widely applied in building construction, industrial and mining, multi-storey workshop, warehouse, station, wharf,etc.

It is convenient, efficient, safe, easy to handle and popular

Main Features

1. A Master switch On the operation board: When the button closed, unexpected action to other buttons can not let cabin working.

2. Anti-falling safety device

3. Mechanical inter-locking door: when the cabin running it can close by itself from protecting people from dropping.

4. Overload calling device.

5.upper and lower travel limit: They can limit the cabin go over the top mast.

6.The top mast section have no rack in order to limit the cabin overrunning and dropping.

7.Manual button: You can operate the button to let the cabin go down when interruption of power supply.

8.Emergency switch: When the cabin losing control and over-running, you can operate the button.

Safety Devices


a. Fall arrest device

b. Loading capacity limiter

c. Limit switch

d. Upper limit protection device

e. Lower limit protection device

f. Door limit protection device

g. Escaping window limit protection device

h. Bell warning device

i. Emergency stop protection device

j. Buffering protection device

k. Motor overload protector

l. Transformer short-circuit protection device

m. Phase sequence protection device

n.hydraulic self –service skylight ,convinent and airtightness is better

o.other safety door supplied to allow operator come in only

p. self serve tanker ,convinent and easy

q."s"type door for material ,easy to operate

r.PLC control system ,staus of working can be showed and convinent to check the problem

Certifications
Detailed Images

Machine Parts

Name: Cage

Brand:Jiuhong

Original: China

This is the normal cage. If you want enclose cage, other colors or put you logo on the cage, please let use konw. We cane make it for you.

Main Features

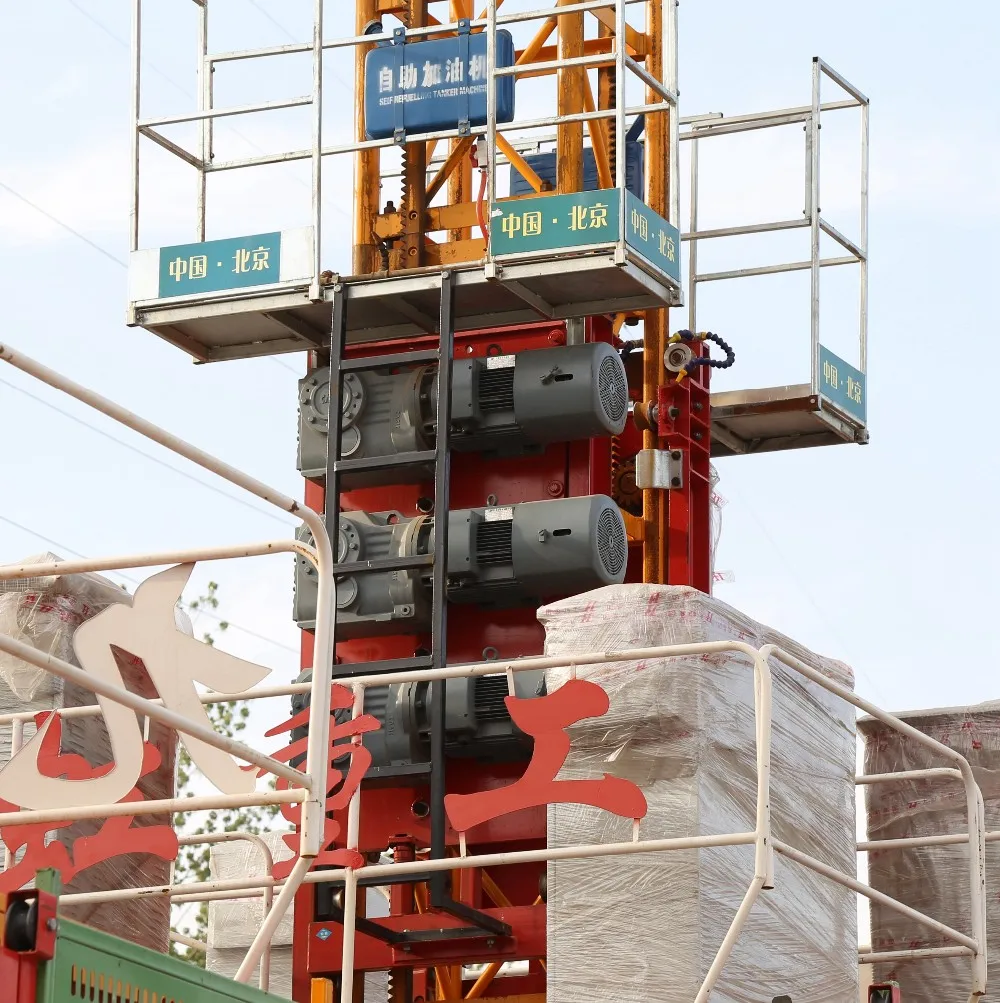

Name: Hoist
Brand: SEW
Original: Germany

SEW motor, Germany brand, German quality

Machine Parts

Name: Master Section
Brand: Jiuhong
Original: China
Treatment:Powder or hot galvanized
Special structure,warmly welcomed by clients

Main Features

Name: Elecric contrl box
Brand: Jiuhong
Original: China
The main electric parts in control box are from Simems, Schneidr and Tianshui

Our Service

Pre-Sales Service

* Inquiry and consulting support.


* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
40HQ
No
1



Packaging Details
We own professional package team,full experience for pakcage with safe and full use of the space.
